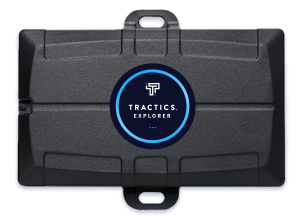

EXPLORER BEACON
Wired or Auxiliary Outlet, Active, No Gateway
SETUP INSTRUCTIONS
Step 1 - Connect Battery

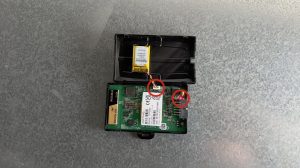

The battery should be fixed to the upper half of the housing. Do not move it. The battery plug is a three-way connector on the top of the PCB.
- Insert the battery plug into the connector. It should only be possible in one orientation.
- The LED on the board will light up and flash if the battery has sufficient charge. Batteries are supplied fully.
Note: If the battery arrives uncharged, it will recharge itself once connected.
- Attach the upper half of the housing to the bottom securely.
Step 2 - Determine location

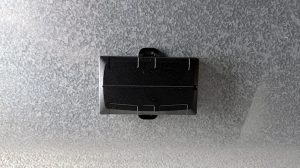

The Explorer beacon will need to be placed in a location where it will not be tampered with and is relatively safe from the outside elements (rain, heat, snow, etc.). Typical locations are under the dashboard or in the headliner.
- We recommend wiring the beacon to a fuse box. Keep this in mind when choosing a location. Wire length from the beacon can be extended if needed.
- We do not recommend putting the beacon in any external location such as the engine compartment.
- Make note of the location. You may need to find it in the future. We recommend in the Notes section for the beacon for future reference.
Step 3 - Wiring Beacon

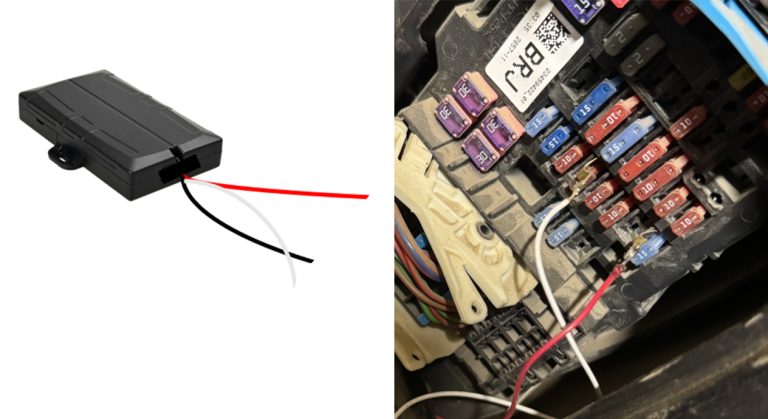

Once the location is determined you will need to wire the beacon to the fuse box. You will need a power source that is always powered (Red Wire), a source that is connected to ignition power (White Wire) and a ground (Black Wire).
We recommend using a Blade Fuse Tap to connect powered wires to the fuse box with a female connector on the wire from the beacon. Ground wires can generally be attached to any bare metal in the vehicle.
